Manufacturing Simulation

  • Home
  • Manufacturing Simulation

MoldFlow Capability​

With MoldFlow certified professionals, we serve customers to identify best Mold Flow design & parameters.

CAD to Mesh Model Preparation​

  • Input CAD and checking​
  • Rheology Meshing in ANSA, Hypermesh​
  • Material details​
  • Feed system layout​
  • Setting up the process parameters​

Mold Flow simulation​

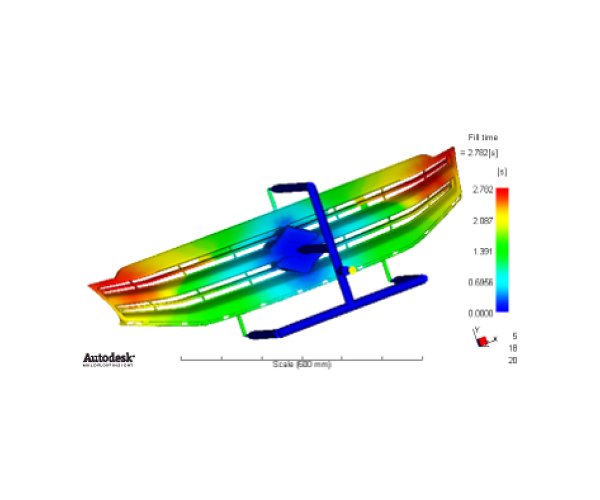

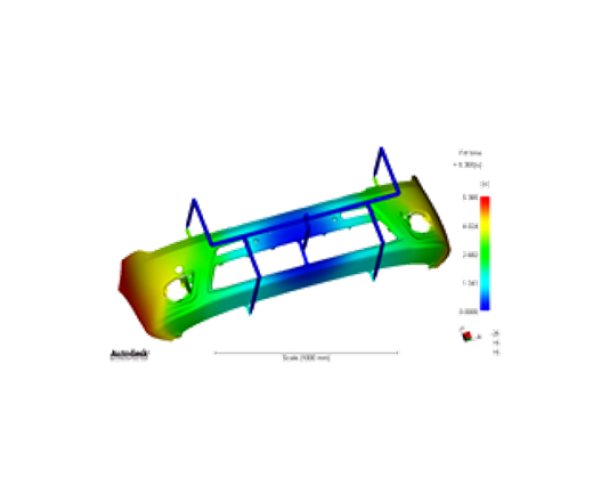

  • Optimized Gating location with Fill and Flow study​
  • Cool / Cool (FEM) Analysis ​
  • Two shot molding Analysis
  • Warpage & Deflection Analysis
  • Weld Line & Air Trap Detection​

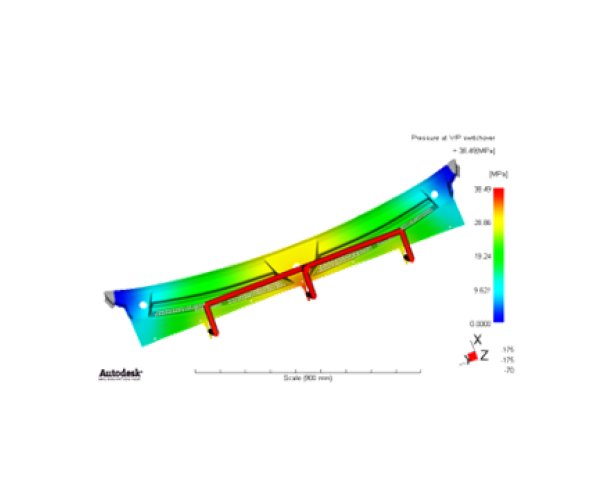

  • Injection Pressure /Temperature​
  • Sink Mark/Void prediction​

Mold Flow Report ​

  • Minimal number of gates / hot drops​
  • Placing weld line in nonvisible regions or minimizing weld lines​
  • Optimized process parameters to minimize cycle time without affecting part quality ​

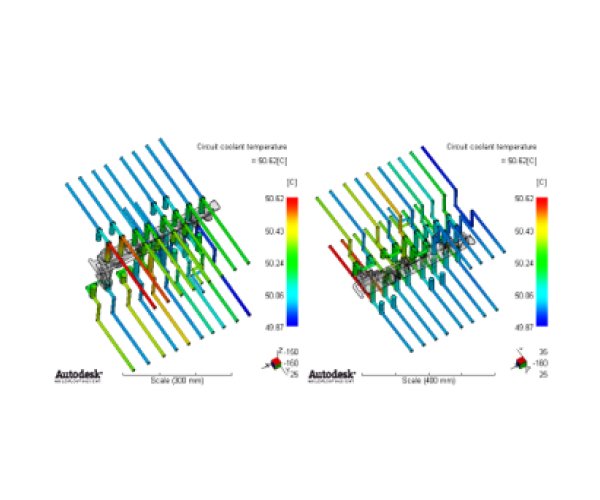

  • Cooling circuits efficiency validation​

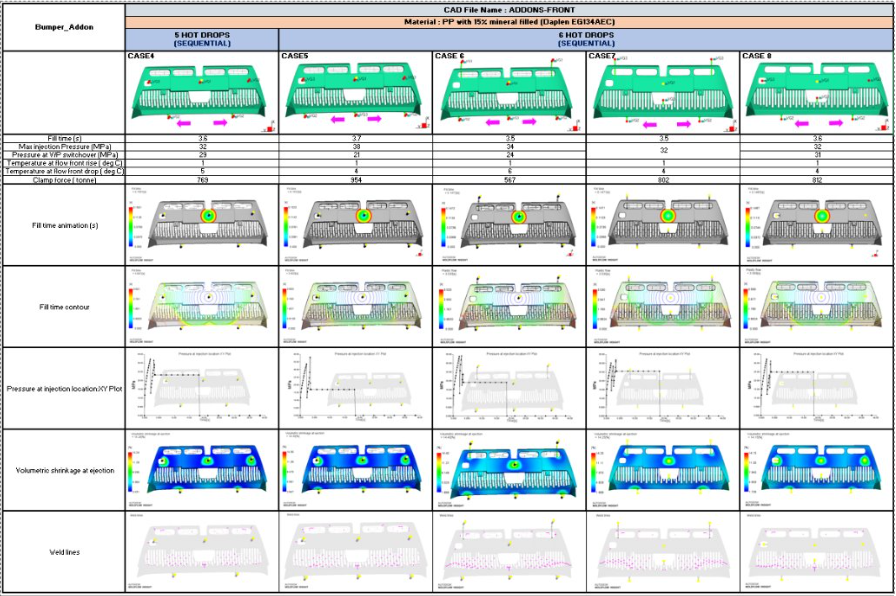

MoldFlow Development Study Process

Our experts optimize Mold DFM and Mold Flow analyses, prioritizing quality while minimizing costs and time.

Metal Forming Study Capability​

Metal Forming simulation experts predict and resolve manufacturing issues in
automotive components, ensuring smooth design transitions before production.

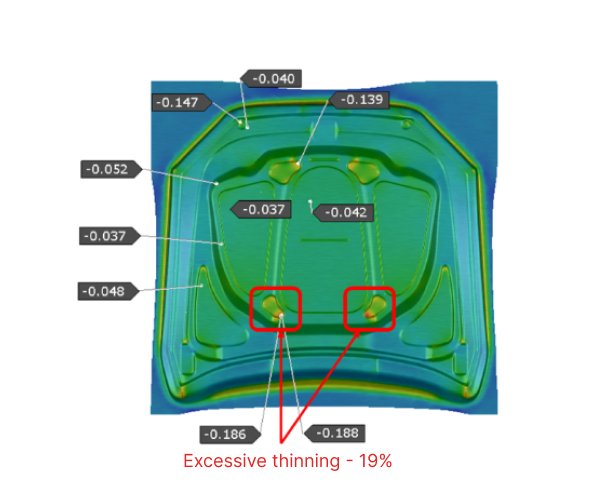

Thinning results

Max Failure

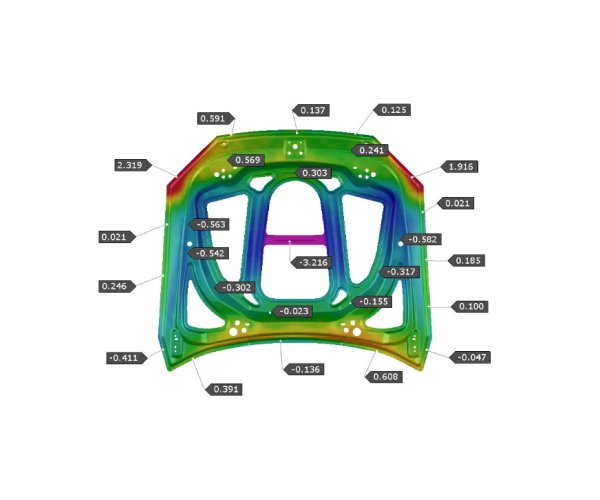

Spring Back​
